PacBrake HP10163-AL Onboard Air Kit with 1/2 Gallon Aluminum Air Tank | Universal

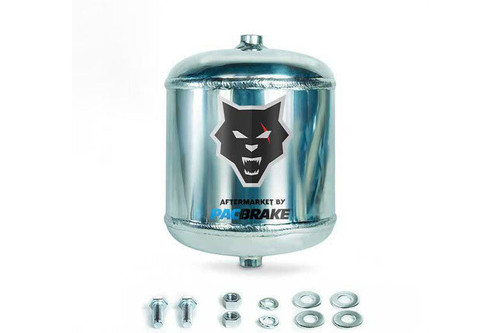

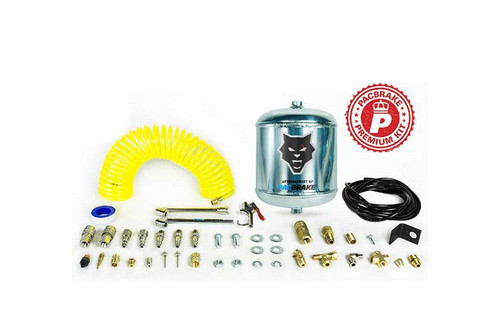

Onboard Air Kit with 1/2 Gallon Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories. Each Onboard Air System comes complete with - HP325 Series 12V DC compressor (Part Number HP10143) - 1/2 Gallon aluminum air tank ¬â€ - Fittings, pressure switch, relay(s) - Electrical connectors and all applicable accessories Compressor features - Copper wire wound permanent magnet motor - Oil-less design; sealed bearings - PTFE piston ring - Cast aluminum cylinder head - Hard anodized aluminum cylinder and aluminum sleeve Compressor Specifications - Part Number HP10143 -12 VDC - 100 percent (1 Hour at 100 PSI) duty cycle - 1/4 HP - Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm - Weight is 5.5 lbs. - 2-1/4 inch NPT ports - Rust inhibitor applied to inside of tank - Max working pressure 150 PSI - Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH) - Weight is 3.4 lbs - Welded on mounting brackets
